Construction of optimised distillation units since 2006
NEW! No more silicone seals required
DISTILLERY MASTER E2-3 Supreme Model 2025
Legal and registration-free distiller made of heavy-duty stainless steel for essential oils
This distiller impresses with its particularly solid material quality. With a 3-litre plant chamber, you have a decent volume for hobby use, even for processing larger quantities of plants or drugs. By raising the aroma basket (optional), you can also experiment with smaller quantities, but you should then work with reduced heating power. The steam is generated in a separate boiler under the plant container, so that contact with boiling water is impossible. Best of all, despite the large plant container, the water boiler only has a volume of 2 litres, which means that the DESTILLIERMEISTER E2-3 Supreme Model 2025 is also legal in Germany and Austria and can be sold and operated without notification to customs.
Extra
So that you can start distilling right away, you will receive a 500 g pack of dried lavender flowers in an aroma and light-protective bag. The packaging is equipped with an aroma-protective seal. These flowers are particularly suitable for steam distillation.
Easy handling:
- In the new model, optimised clamping fasteners mean that no seals are required between the 1st and 2nd or 3rd and 4th chambers. Sealing is achieved by metal contact. This means that there are no follow-up costs for this model.
- Fill the water/steam boiler with at least 1.3 litres and no more than 1.7 litres of ideally demineralised or distilled water.
- Attach the 3-litre plant tube and close the boiler with the clamps 1.1.
- Place the aroma basket in the plant tube and open it.
- Fill to the brim with herbs or medicinal plants – do not compress. This is approximately 3 litres.
- Place the lid 3 on top and tighten the fasteners 2.4.
- Insert the distillation bridge 4 into the socket 3.1.
- Insert the thermometer with the plug into the socket 4.2.
- Screw any cooling water hoses that are not included in the accessories to the cooler.
- Switch on the heat source and collect the hydrolate with oil at 4.6.
- Distil for about 8 minutes at high power (induction plate 2000 watts). You should have 500 ml of distillate.
The water/steam container and plant/drug tube, as well as all distillate-carrying pipes and connections, are made of stainless steel.

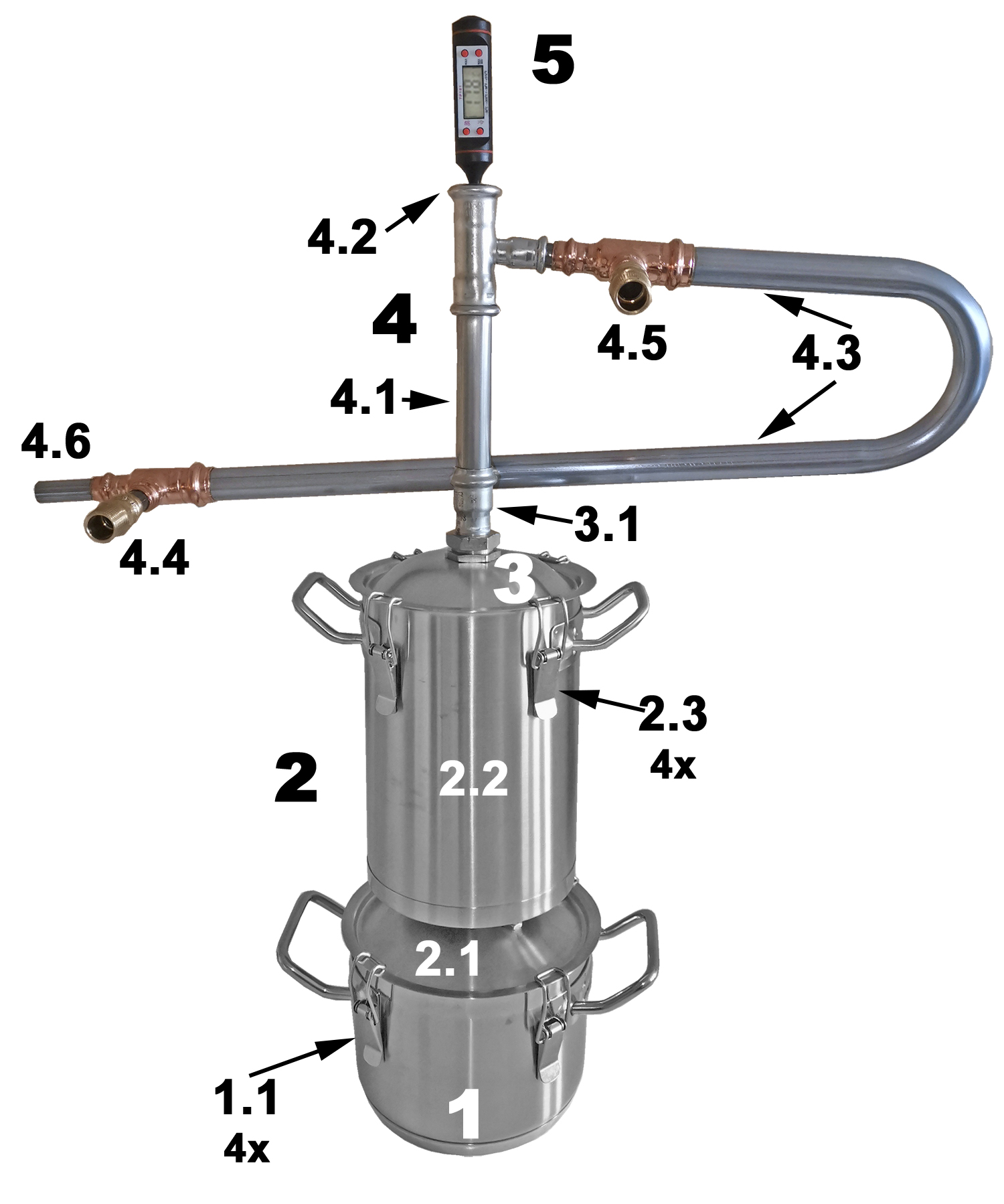

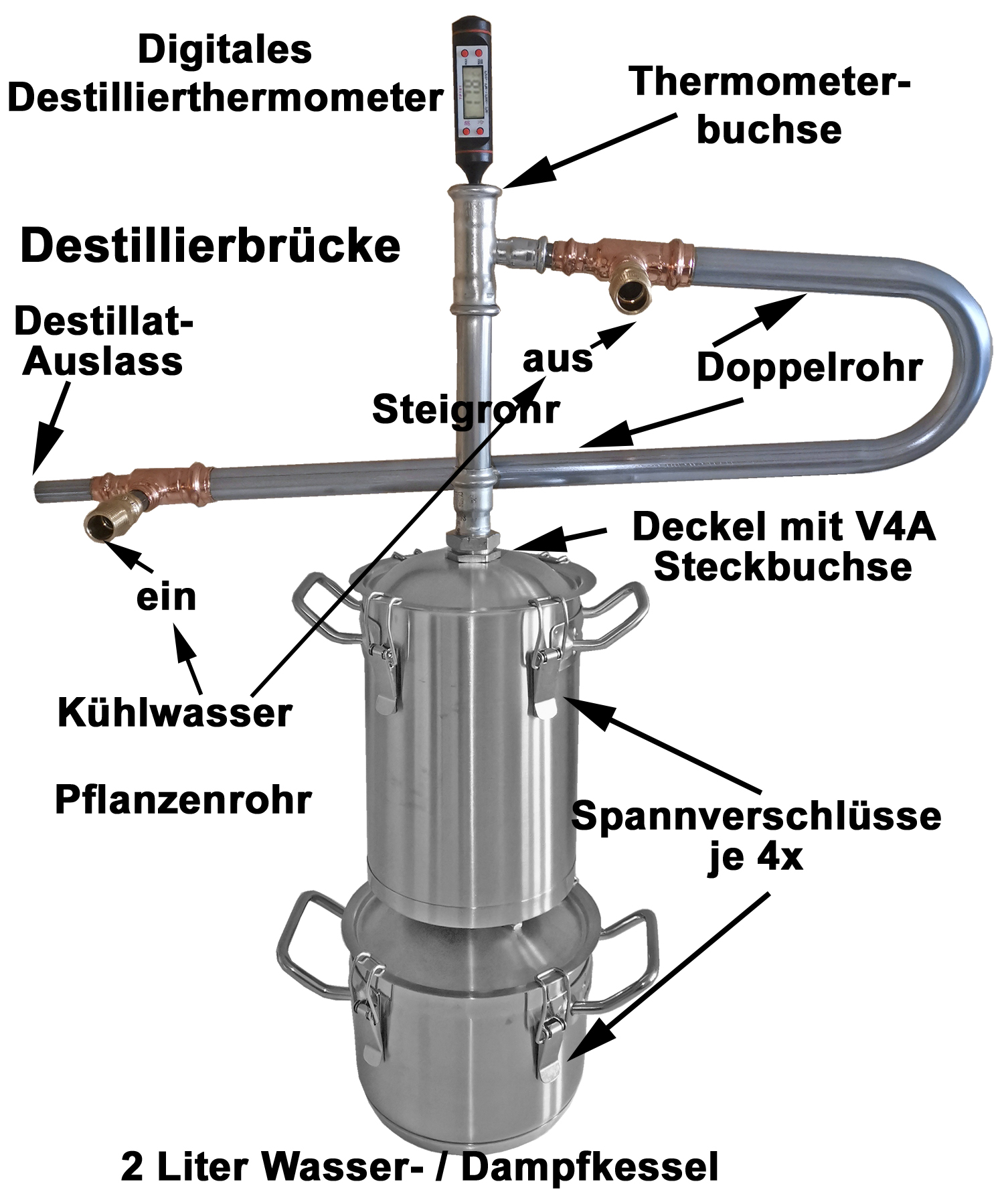

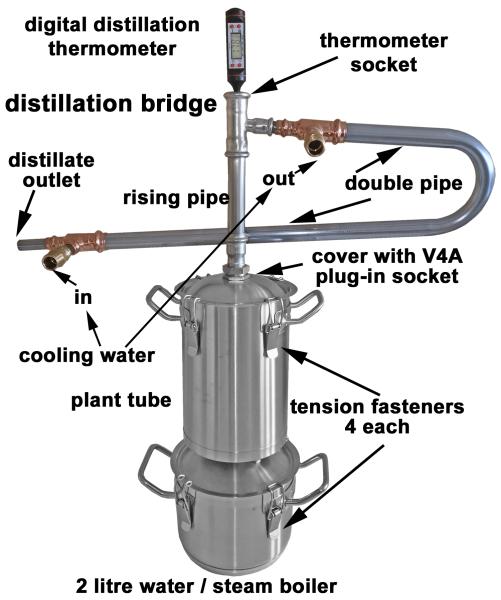

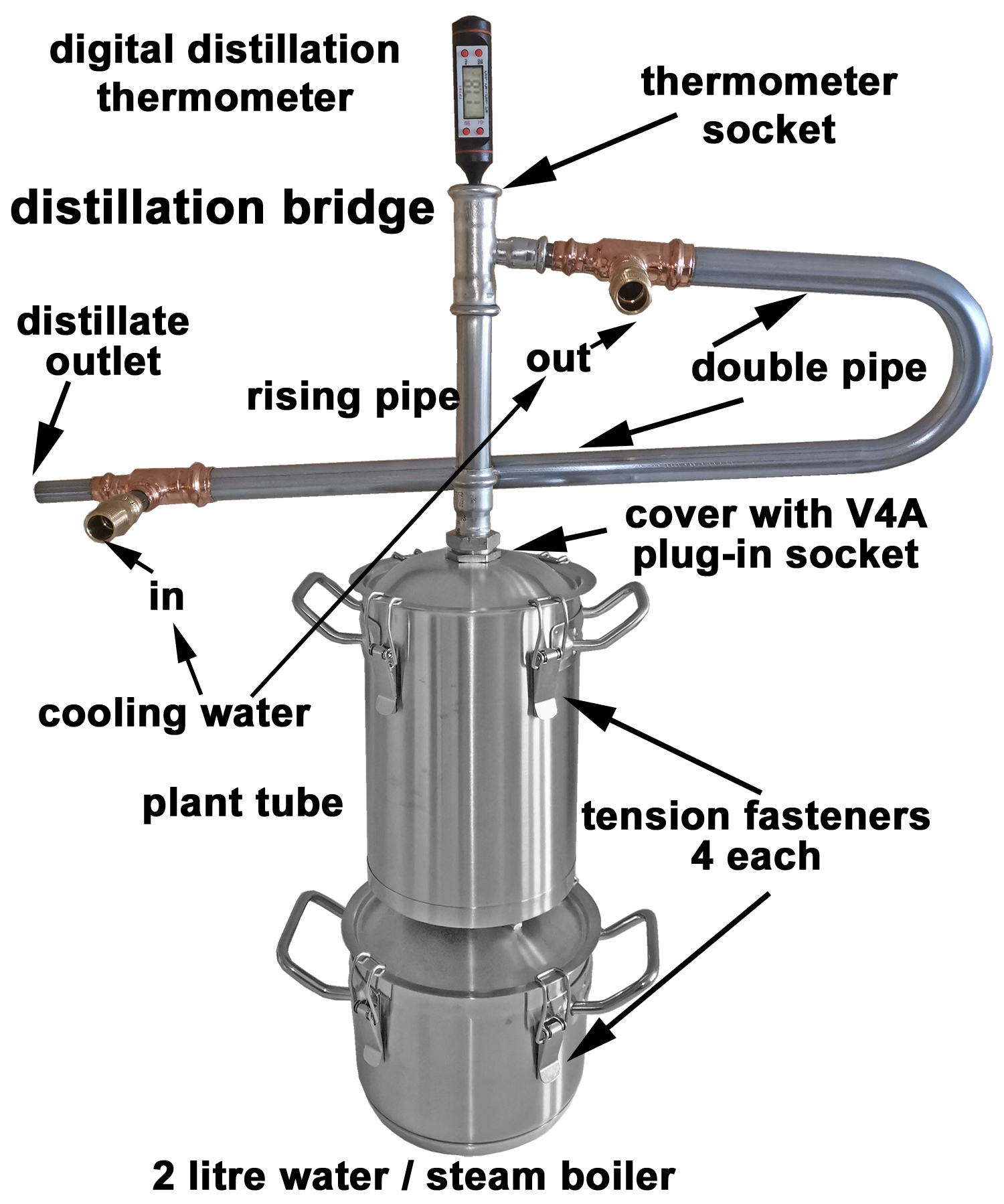

Construction
- Water/steam boiler, 2 litres. Approx. 1.8 litres of water are filled into the boiler.
- 4 tension locks for secure closure of the water/steam boiler using 2.1.
- Plant/drug tube, approx. 3 litre capacity.
- Lid for closing the water boiler,
- approx. 3 litre plant tube,
- 4 tension locks for closing the plant tube using the lid 3.
-
Lid with plug socket for the distillation bridge 4.
-
Plug socket.
-
- Distillation bridge with curved counterflow performance cooler
- Riser pipe
- Thermometer socket
- Double pipe cooler in counterflow (outer jacket, inner core)
- Cooling water inlet
- Hot water outlet
- Hydrolate outlet
- Digital distillation thermometer with silicone stopper, insert into 4.2.
- Aroma basket for insertion into the steam pipe. This is positioned approximately 3 cm above the bottom and has a closed storage area in the middle so that the rising steam jet does not flow directly through the plant material and create a tunnel effect, which would lead to significant losses. Due to the storage area, the steam initially flows radially and then rises through its own thermal action. The plant tube has a height/diameter ratio greater than 1, so that an effective chimney effect promotes the drag effect. If you also want to work with smaller quantities of plant material, you can order the aroma basket with optional adjustment.
